Discs for pneumatic seeders

SEED DISCS FOR “SFOGGIA” SEED DRILLS

SFOGGIA_1
SEED DISCS FOR “SFOGGIA” SEED DRILLS
SFOGGIA_2
SEED DISCS FOR “SFOGGIA” SEED DRILLS
SFOGGIA_CALIBRA
SEED DISCS FOR “SFOGGIA” SEED DRILLS
SFOGGIA_ASSEMBLING
SEED DISCS FOR “SFOGGIA” SEED DRILLS
SFOGGIA_1
SFOGGIA_2
SFOGGIA_CALIBRA
SFOGGIA_ASSEMBLING
  • Compatible with SFOGGIA SIGMA 5, SFOGGIA KING, SFOGGIA GAMMA PLUS, and SFOGGIA CALIBRA seed drills;
  • Seed discs and agitators are made of premium AISI 430 stainless steel;
  • Technical specifications and service life fully match or exceed OEM standards;

A wide range of discs, including custom and non-standard options

SEED DISCS FOR  "SFOGGIA SIGMA 5" SEEDERS

OEM №

Number of the holes

Diameter of the holes, mm

01306007.0040

20

2,1

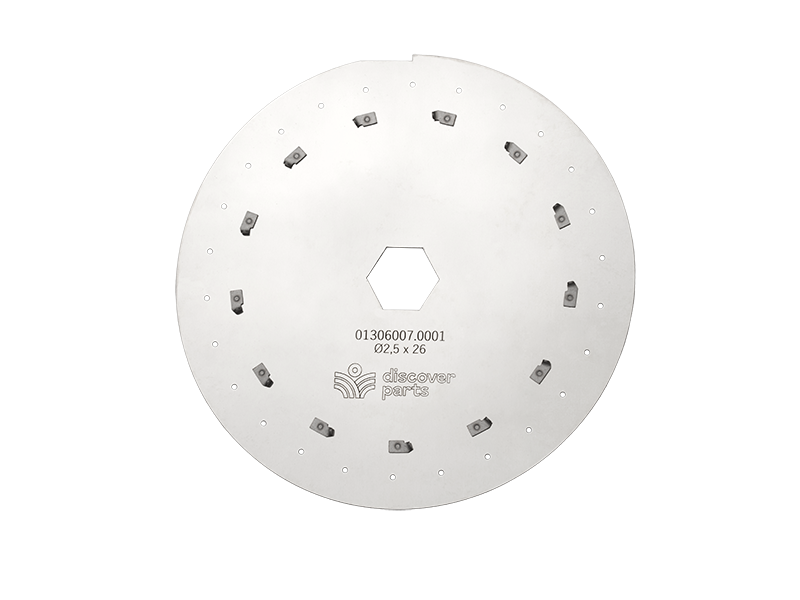

01306007.0001

26

2,5

01306065.0003

26

4,5

01306065.0004

26

4,75

01306065.0005

26

5,0

01306065.0006

26

5,5

01306007.0055

36 without agitators

2,1

01306007.0005

36

3,5

01306007.0081

36

5,0

01306007.0017

36

5,5

01306007.0019

52

1,1

01306007.0056

52  without agitators

2,1

01306007.0006

52

2,1

01306007.0021

52

4,5

01306007.0039

70

0,5

01306007.0048

70

0,8

01306007.0025

70

1,1

01306007.0007

70

3,5

01306007.0062

70  without agitators

4,25

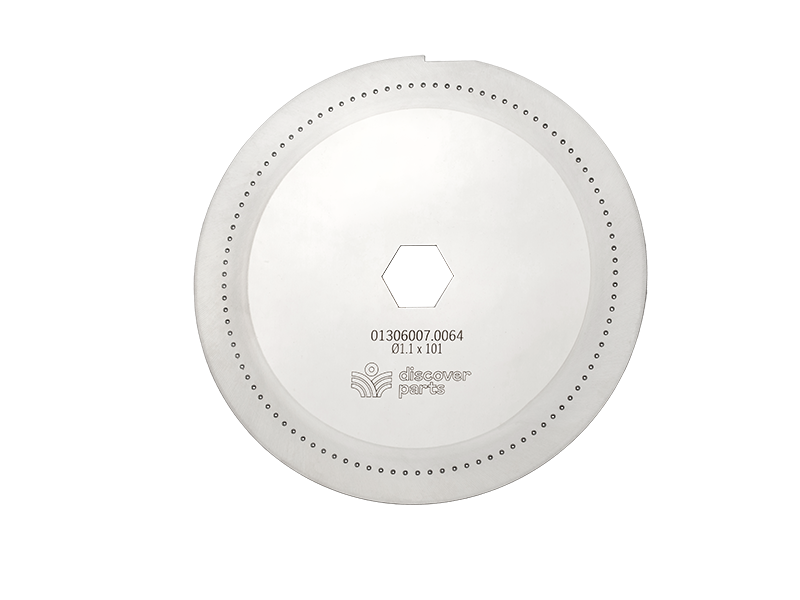

01306007.0064

101  without agitators

1,1

01306007.0037

without holes
