- Compatible with KUHN PLANTER 1, 2, 3, and KUHN MAXIMA 1, 2 seed drills;
- Seed discs and agitators are made of premium AISI 430 stainless steel (for PLANTER models) or AISI 304 stainless steel (for MAXIMA models);

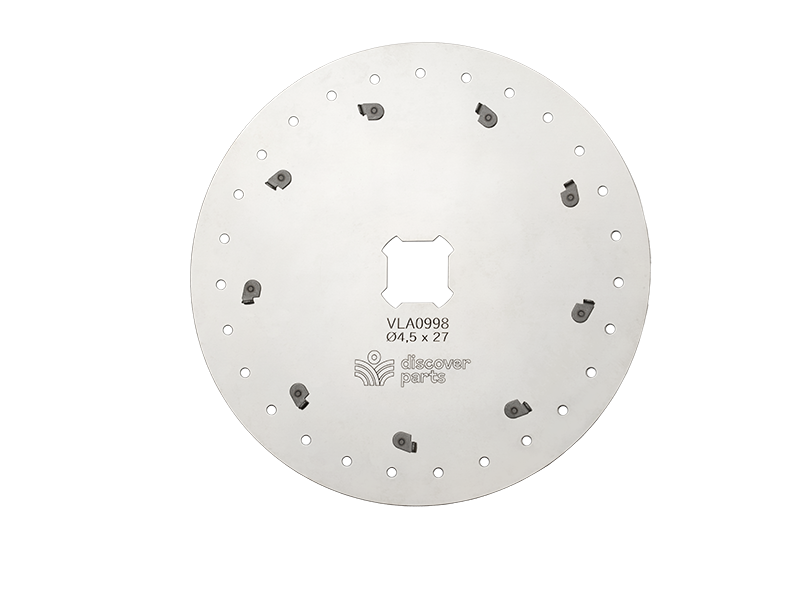

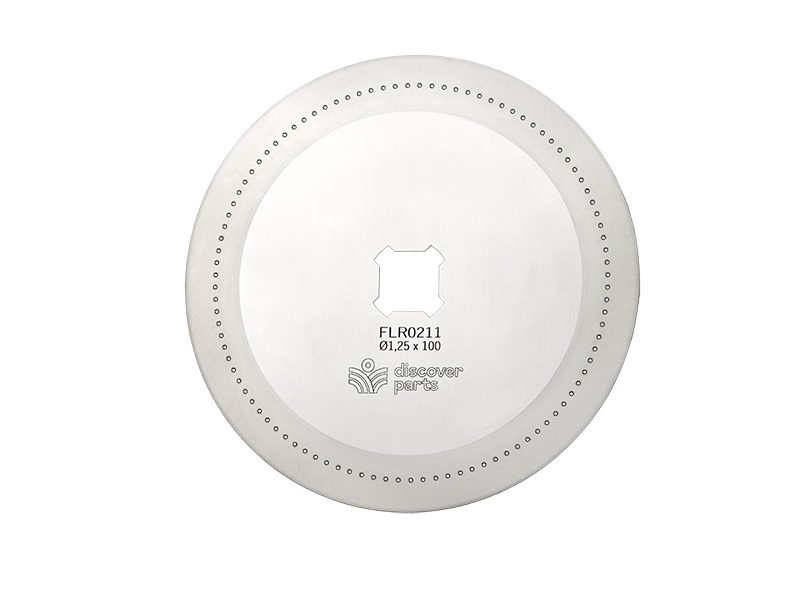

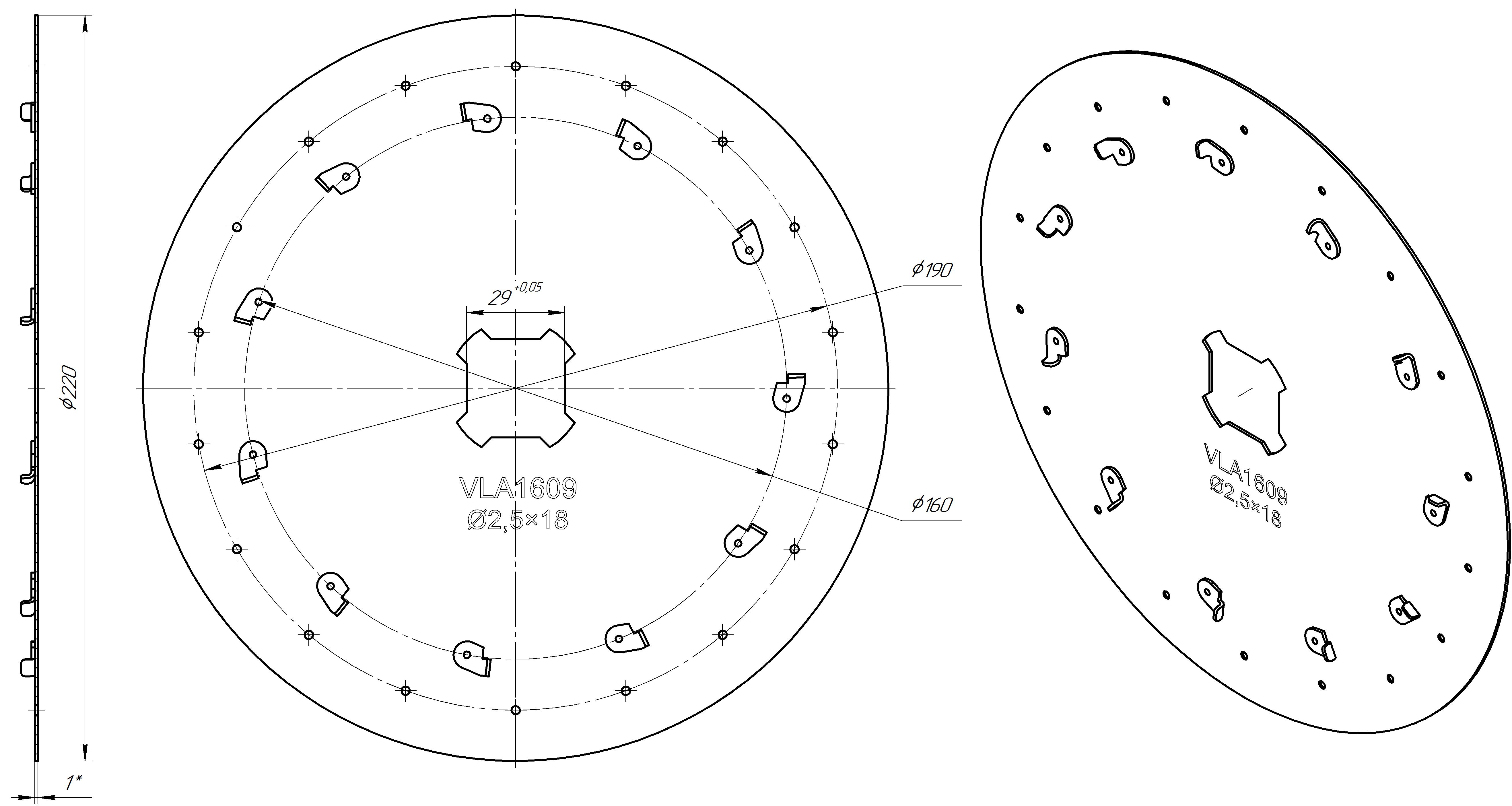

SEED DISCS FOR "KUHN PLANTER" SEEDERS | ||
OEM № | Number of the holes | Diameter of the holes, mm |
VLA2841 | 4 | 2,1 |
FLA2993 | 4 without agitators | 5,5 |
FLA2216 | 6 without agitators | 1,25 |
N04353A0 | 6 | 1,75 |
VLA1170 | 6 | 2,1 |
FLA2207 | 6 without agitators | 2,1 |
VLA1297 | 6 | 5,5 |
N04332A0 | 7 | 4,0 |
N01646A0 | 8 | 3,5 |
N01647A0 | 8 | 4,0 |
N01648A0 | 8 | 4,5 |
VLA1298 | 8 | 5,5 |
K3620380 | 9 without agitators | 1,25 |
VLA1050 | 10 | 3,5 |
FLA2215 | 11 without agitators | 1,25 |
VLA1610 | 11 | 2,1 |
FLA2205 | 11 without agitators | 2,1 |
VLA2210 | 11 | 2,5 |
VLA1578 | 11 | 5,5 |
VLA1104 | 18 | 0,8 |
FLA2230 | 18 without agitators | 0,8 |
FLA2225 | 18 without agitators | 1,0 |
FLA2233 | 18 without agitators | 1,75 |
VLA0976 | 18 | 2,1 |
FLA1884 | 18 without agitators | 2,1 |
VLA0984 | 18 | 2,5 |
VLA1609 | 18 | 2,5 |
K3611400 | 18 | 3,0 |
VLA0961 | 18 | 3,5 |
FLA2996 | 18 without agitators | 3,5 |
VLA0992 | 18 | 4,0 |
VLA1656 | 18 | 4,5 |
VLA1052 | 18 | 5,5 |
VLA0980 | 20 | 2,5 |
FLA2224 | 22 without agitators | 1,0 |
FLA1935 | 22 without agitators | 2,1 |
VLA1055 | 22 | 2,1 |
VLA1937 | 22 | 2,5 |
VLA0985 | 22 | 3,5 |
VLA0993 | 22 | 4,0 |
VLA0996 | 22 | 4,5 |
N1001670 | 22 | 5,0 |
VLA0959 | 22 | 5,5 |
FLA1867 | 22 without agitators | 5,5 |
VLA1923 | 22 | 7,0 |
VLA0986 | 23 | 3,5 |
VLA0987 | 24 | 3,5 |
VLA1002 | 24 | 5,5 |
VLA0997 | 25 | 4,5 |
VLA1914 | 27 | 2,1 |
FLA2234 | 27 without agitators | 2,1 |
VLA1625 | 27 | 3,5 |
VLA0998 | 27 | 4,5 |
N0B734A0 | 27 | 5,0 |
VLA0598 | 27 | 5,5 |
VLA0981 | 30 | 2,5 |
FLA2232 | 31 without agitators | 1,0 |
VLA0972B | 31 | 1,75 |
FLA1880 | 31 without agitators | 1,75 |
VLA0957 | 31 | 2,1 |
FLA1865 | 31 without agitators | 2,1 |
VLA0982 | 31 | 2,5 |
VLA0988 | 31 | 3,5 |
VLA0999 | 31 | 4,5 |
VLA2053 | 31 | 5,5 |
FLA2232 | 33 without agitators | 0,8 |
FLA2217 | 33 without agitators | 1,25 |
FLA2210 | 33 without agitators | 1,5 |
VLA1577B | 33 | 1,75 |
FLA2617 | 33 without agitators | 1,75 |
VLA1584 | 33 | 2,1 |
FLA2208 | 33 without agitators | 2,1 |
VLA1945 | 33 | 2,5 |
VLA0989 | 33 | 3,5 |
VLA0994 | 33 | 4,0 |
VLA1000 | 33 | 4,5 |
VLA0963 | 33 | 5,5 |
VLA1250 | 33 | 6,0 |
K3626240 | 33 | 7,0 |
VLA0977 | 35 | 2,1 |
FLA2213 | 35 without agitators | 2,1 |
K3620740 | 40 | 0,8 |
VLA1619 | 40 | 4,5 |
VLA2222 | 40 | 5,0 |
FLA2227 | 48 without agitators | 0,5 |
FLA2226 | 48 without agitators | 0,8 |
FLA2222 | 48 without agitators | 1,0 |
FLA2218 | 48 without agitators | 1,25 |
FLA2214 | 48 without agitators | 1,5 |
VLA0937B | 48 | 1,75 |
FLA1881 | 48 without agitators | 1,75 |
VLA0958 | 48 | 2,1 |
FLA1866 | 48 without agitators | 2,1 |
VLA0983 | 48 | 2,5 |
VLA1792 | 48 | 3,0 |
VLA0990 | 48 | 3,5 |
VLA0995 | 48 | 4,0 |
VLA0962 | 48 | 4,5 |
VLA1003 | 48 | 5,5 |
VLA1922 | 48 | 7,0 |
FLA2219 | 54 without agitators | 1,0 |
VLA1138 | 54 | 3,5 |
VLA1139 | 54 | 4,5 |
VLA1136 | 57 | 3,5 |
VLA1137 | 57 | 4,5 |
VLA1070 | 57 | 5,5 |
FLA2231 | 70 without agitators | 0,5 |
K3620750 | 70 | 0,8 |
FLA2229 | 70 without agitators | 0,8 |
FLA2221 | 70 without agitators | 1,0 |
FLA2220 | 70 without agitators | 1,25 |
FLA2209 | 70 without agitators | 1,5 |
VLA0974B | 70 | 1,75 |
VLA0978 | 70 | 2,1 |
FLA1886 | 70 without agitators | 2,1 |
VLA0984 | 70 | 2,5 |
VLA0991 | 70 | 3,5 |
VLA1212 | 70 | 4,0 |
VLA1051 | 70 | 4,5 |
VLA1213 | 70 | 5 |
VLA1105 | 70 | 5,5 |
VLA1920 | 80 | 3,5 |
VLA1626A | 80 | 4,5 |
FLR0149 | 100 without agitators | 0,5 |
K3610730 | 100 | 0,8 |
FLR0181 | 100 without agitators | 0,8 |
FLR0211 | 100 without agitators | 1,25 |
FLA0211 | 100 without agitators | 1,5 |
VLA0975B | 100 | 1,75 |
FLA2203 | 100 without agitators | 1,75 |
VLA0979 | 100 | 2,1 |
FLA2212 | 100 without agitators | 2,1 |

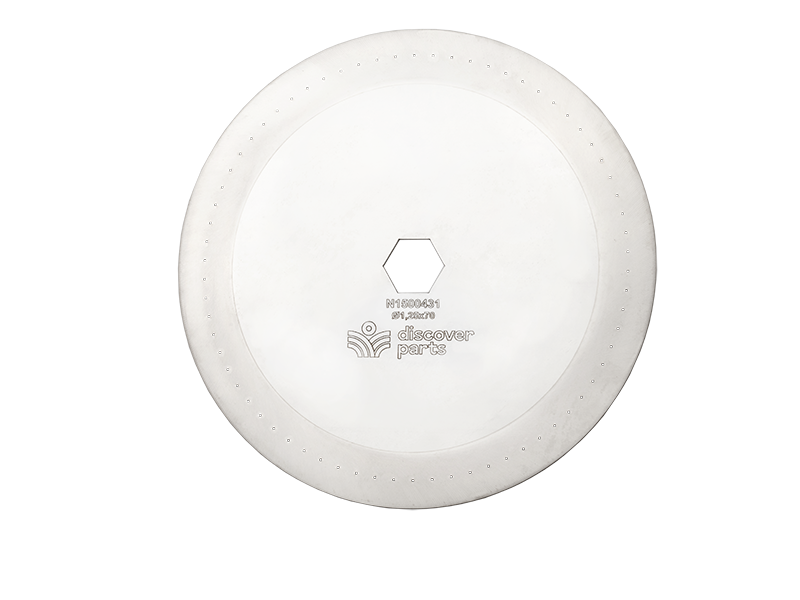

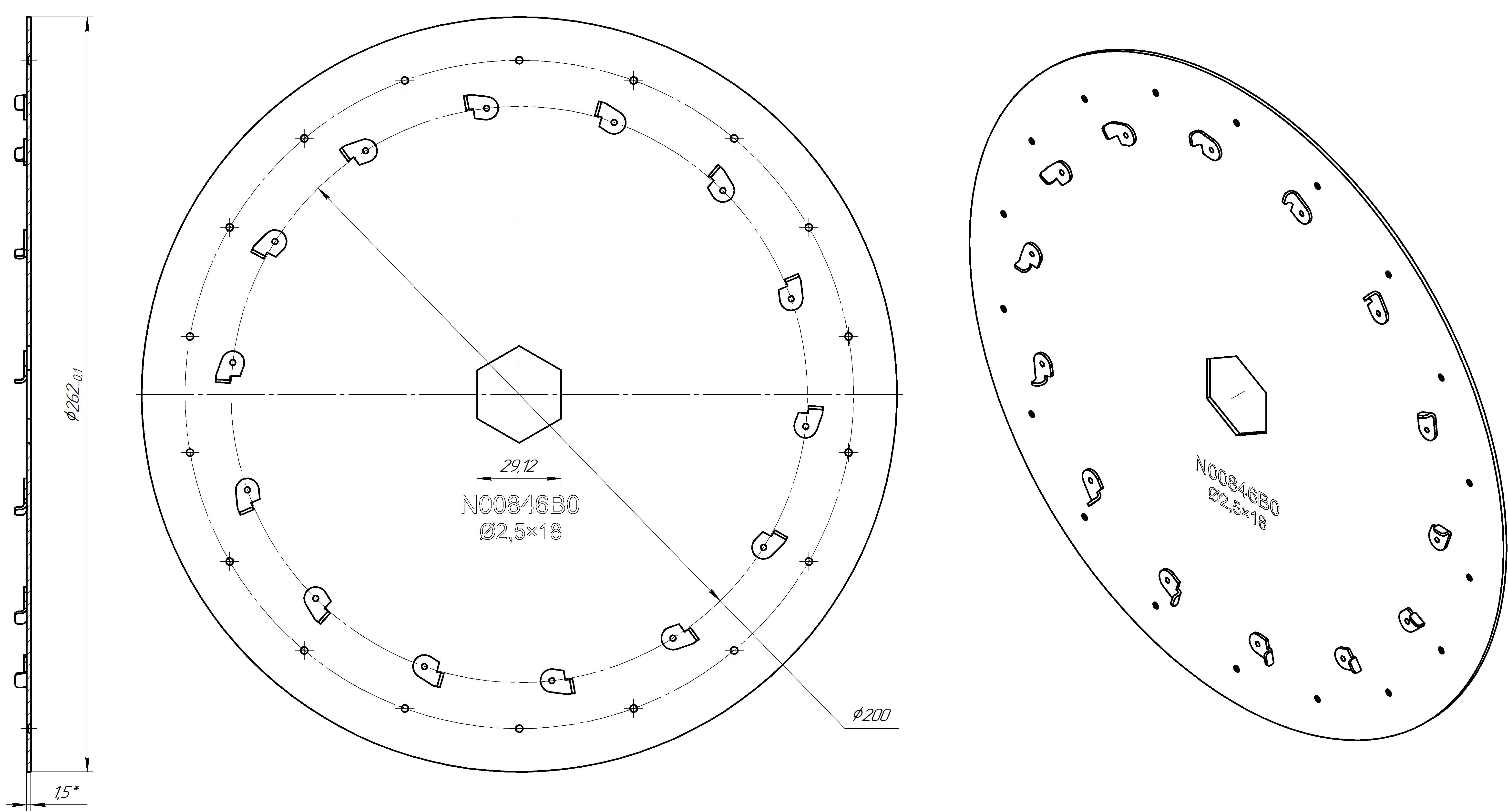

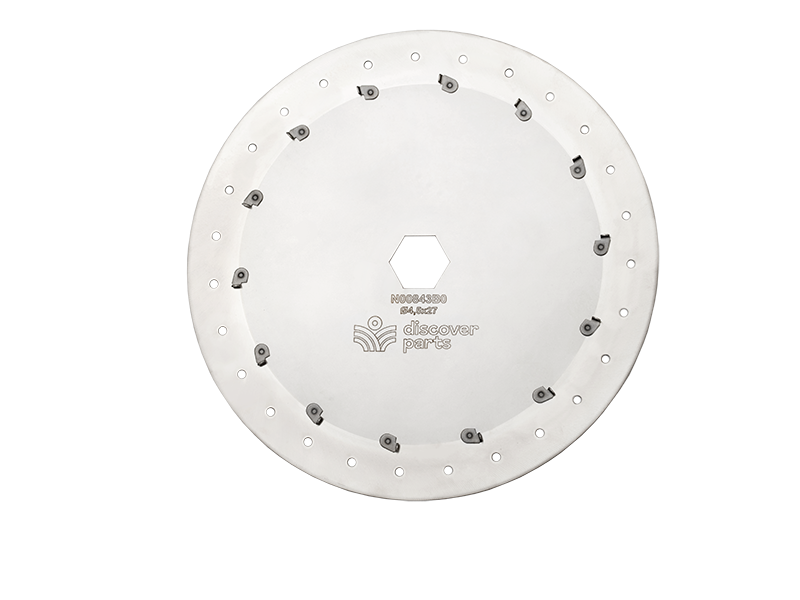

SEED DISCS FOR "KUHN MAXIMA" SEEDERS | ||
Код | Number of the holes | Diameter of the holes, mm |
K3621040 | 4 | 2,1 |
K3614440 | 4 | 3,5 |
K3624610 | 4 | 4,5 |
K3614450 | 6 | 3,5 |
K3624970 | 6 | 4 |
K3624600 | 6 | 4,5 |
K3623010 | 8 | 4,5 |
K3620370 | 9 without agitators | 1,25 |
K3615310 | 9 | 5 |
N1503620 | 12 | 1,5 |
N04343B0 | 12 | 2,5 |
N1502090 | 12 | 3,5 |
K3624620 | 12 | 4,5 |
K3624960 | 15 | 4,5 |
K3621040 | 18 | 0,8 |
N00846B0 | 18 | 2,5 |
N04318B0 | 18 | 3,0 |
N00847B0 | 18 | 3,5 |
K3620660 | 18 | 4,5 |
K3616470 | 18 | 5,0 |
K3620770 | 18 | 5,5 |
N1503810 | 22 | 2,1 |
N00856B0 | 22 without agitators | 2,1 |
N04341B0 | 22 | 2,5 |
N03840B0 | 22 | 3,5 |
N00851B0 | 22 | 4,5 |
N02511B0 | 22 | 5,0 |
N00852B0 | 22 | 5,5 |
K3621860 | 24 | 1,0 |
N1503140 | 27 | 2,5 |
N1500670 | 27 without agitators | 3,0 |
N03828B0 | 27 | 3,5 |
N00843B0 | 27 | 4,5 |
N00905B0 | 27 | 5,0 |
N00844B0 | 27 | 5,5 |
N1500340 | 30 | 7,0 |
N00845B0 | 31 without agitators | 2,1 |
N00855B0 | 33 | 3,5 |
N04107B0 | 33 | 4,5 |
K3609400 | 33 | 5,0 |
N04282B0 | 33 | 5,5 |
N1503380 | 35 | 3,5 |
N1503390 | 35 | 4,5 |
N1503400 | 35 | 5,0 |
N1503410 | 35 | 5,5 |
K3601440 | 48 without agitators | 1,25 |
K3614280 | 48 without agitators | 2,1 |
N02951B0 | 48 | 2,5 |
N00848B0 | 48 | 3,5 |
K3611230 | 48 without agitators | 4,5 |
N04305B0 | 48 | 4,5 |
N1503130 | 48 | 5,5 |
N1500061 | 54 without agitators | 3,0 |
N1500681 | 54 | 4,5 |
N1500691 | 54 | 5,5 |
K3614270 | 70 without agitators | 0,8 |
N1500431 | 70 without agitators | 1,25 |
K3622070 | 70 | 1,75 |
N02851B0 | 70 | 2,5 |
N04342B0 | 70 | 3,5 |
N00850B0 | 70 | 4,5 |
N1502170 | 80 | 2,5 |
N1501591 | 80 | 3,5 |
K36144980 | 80 | 4,5 |
N1501051 | 100 without agitators | 0,8 |
N00849B0 | 100 without agitators | 1,25 |
N1500701 | 100 | 1,75 |
N04293B0 | 100 | 3,5 |
